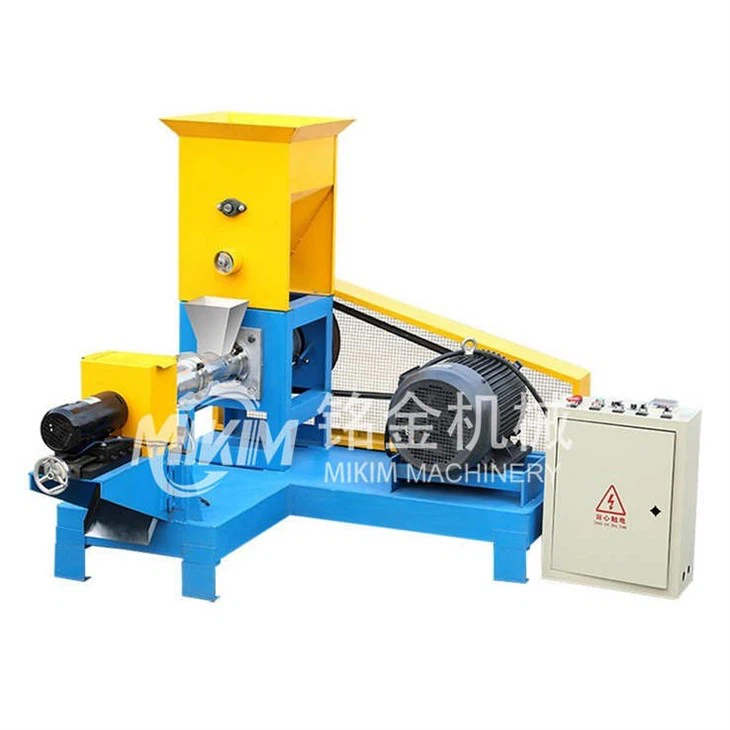

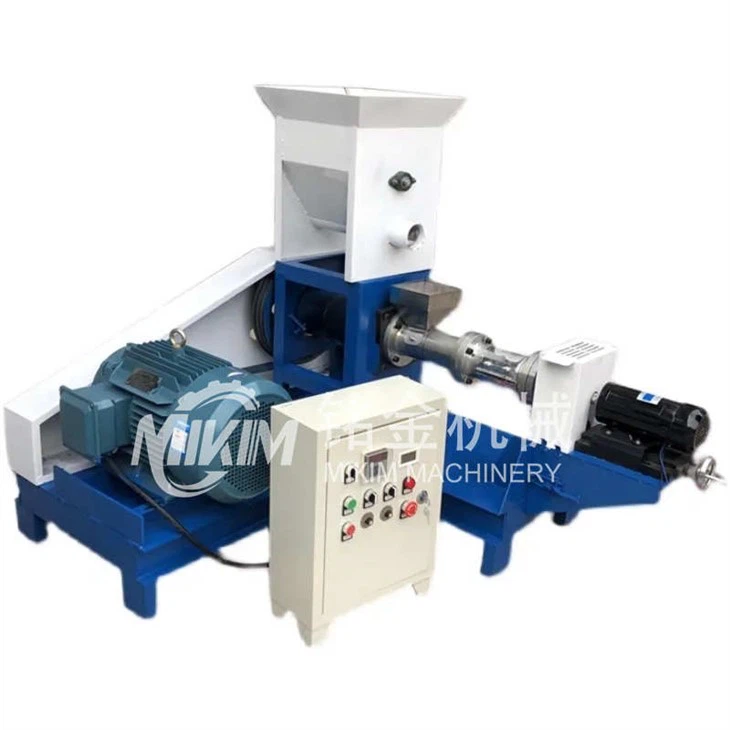

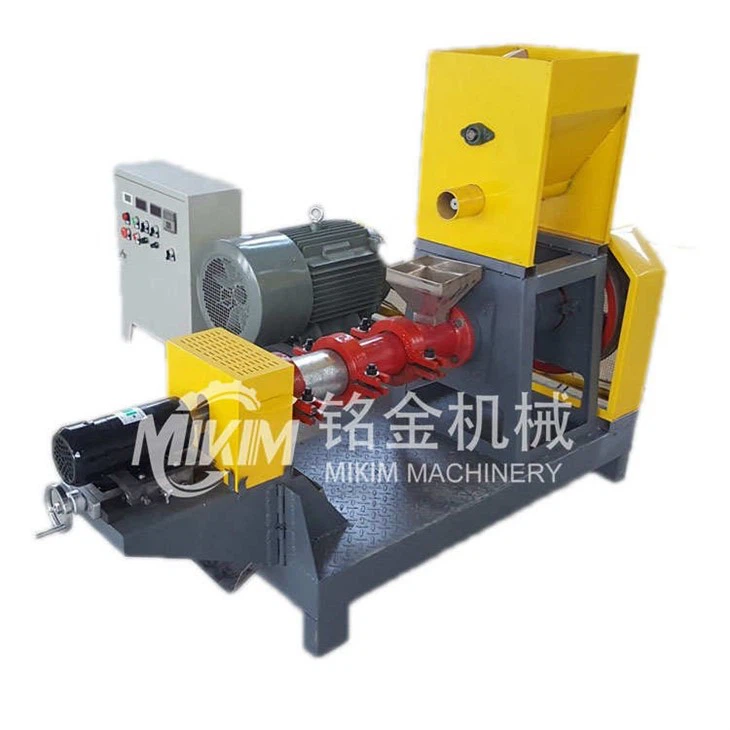

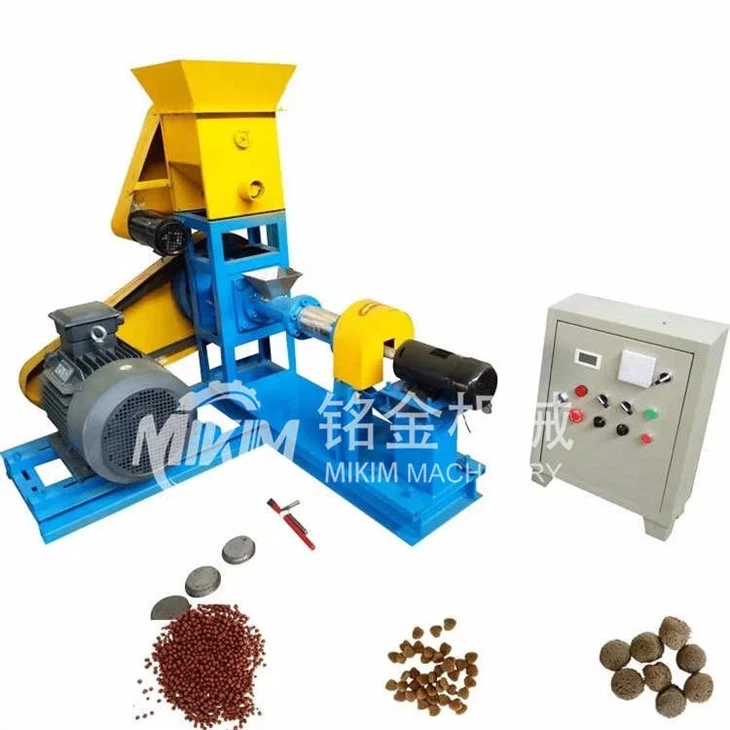

Me Extruder Tshuab
me me extruder tshuab
1. Tsis siv neeg floating ntses pub tshuab thiab ntses pub tshuab tuaj yeem tsim cov duab sib txawv zaub mov rau nyuj, yaj, dev, ntses lossis miv thiab lwm yam.
2.Los ntawm qhov pretreatment ntawm pub, nws tuaj yeem txo qhov poob ntawm cov khoom noj khoom haus thiab nce qib protein. Yog li cov tsiaj yuav zom tau yooj yim.
3. Cov ntses pub ua kab siv cov pob kws hmoov nplej, cov hmoov nplej, tsis kub soya flakes pluas noj, nplej bran, nplej bran raws li raw khoom
4.Puffed extrusion ntses noj tshuab tuaj yeem tsim tau ob qho tib si Floating thiab sinking pub pellet. Rau ntab ntses noj, nws tuaj yeem ntab li 20 teev.
|
Qauv
|
Lub cev muaj zog (KW)
|
Peev xwm (KG / H)
|
Qhov hnyav (kg)
|
qhov ntev (mm)
|
|
125
|
3-4
|
80-100
|
70
|
800*300*750
|
|
150
|
3-4
|
150-200
|
85
|
800*300*800
|
|
210
|
7.5-11
|
250-300
|
180
|
850*350*910
|
|
260
|
15
|
500
|
280
|
1080*420*1040
|
|
300
|
18.5-22
|
900-1100
|
350
|
1250*550*1300
|
|
400
|
30
|
1500-2000
|
800
|
1500*610*1800
|
|
500
|
37
|
3000
|
1260
|
1700*700*1900
|
Cov ntsiab lus tseem ceeb:
Voltage: Peb theem: 380V / 50Hz, Ib theem: 220V / 50Hz, peb tuaj yeem ua raws li cov neeg siv khoom 'Local voltage raws li ntau lub teb chaws.
Cov ntaub ntawv tshuab: Tag nrho cov aquaculture ntses pub tshuab cov kab ntau lawm yog tsim los ntawm cov hlau tsis muaj steel, cov kab no yog tsim tsim nyog thiab nrog kev ua haujlwm siab; Cov ntsia hlau yog tsim los ntawm cov hlau alloy, nrog lub tsev thaiv cov txheej txheem thiab kev ua haujlwm ntawm tus kheej.
Qhov tseem ceeb ntawm Twin ntsia hlau extruder nrog hluav taws xob cua sov system:
A. Cov ntsia hlau yog tsim los ntawm cov hlau alloy (38CrMoAl) thiab cov khoom siv tshwj xeeb los ntawm cov txheej txheem nitriding, HRC hardness nyob ib ncig ntawm 60---62, nws muaj peev xwm ntxuav tus kheej zoo thiab tsis tas yuav tso tawm lossis ntxuav lub thoob thiab ntsia hlau, thaum ci los yog hloov cov ntaub ntawv.
B. Lub extrusion chim yog tsim los ntawm carbon steel, yog ua los ntawm #45 steel, stainless hlau txheej.
C. Lub gearbox muaj tsis siv neeg lubrication muaj nuj nqi, nrog extends iav lub neej.
D. Txiav riam tsau nyob rau hauv lub taub hau tuag lub rooj, rotary txiav los ntawm V-siv tsav.
E. Siemens (Tuam Tshoj) hom khoom siv hluav taws xob siv hauv lub thawv tswj, xyuas kom cov txheej txheem extrusion zoo meej.
F. Main Lub cev muaj zog los ntawm Siemens (Tuam Tshoj), xyuas kom meej tias nws muaj zog extrusion thiab kev ua tau zoo heev.
Cim npe nrov: me me extruder tshuab, Tuam Tshoj, manufacturers, hoobkas, pheej yig, luv nqi, ua nyob rau hauv Suav teb
