Aub Ntses Pub Extruder Khoom
Tianjin Mikim Technique Co., Ltd. yog ib qho ntawm cov tuam txhab kev paub ntau tshaj plaws thiab cov chaw muag khoom ntawm cov khoom siv extruder hauv Suav teb. Yog hais tias koj yuav mus yuav pheej yig aub ntses pub extruder khoom ua nyob rau hauv Suav teb, txais tos kom tau txais cov ntaub ntawv ntau ntxiv los ntawm peb lub hoobkas. Tag nrho peb cov khoom yog nrog cov khoom zoo thiab tus nqi qis.

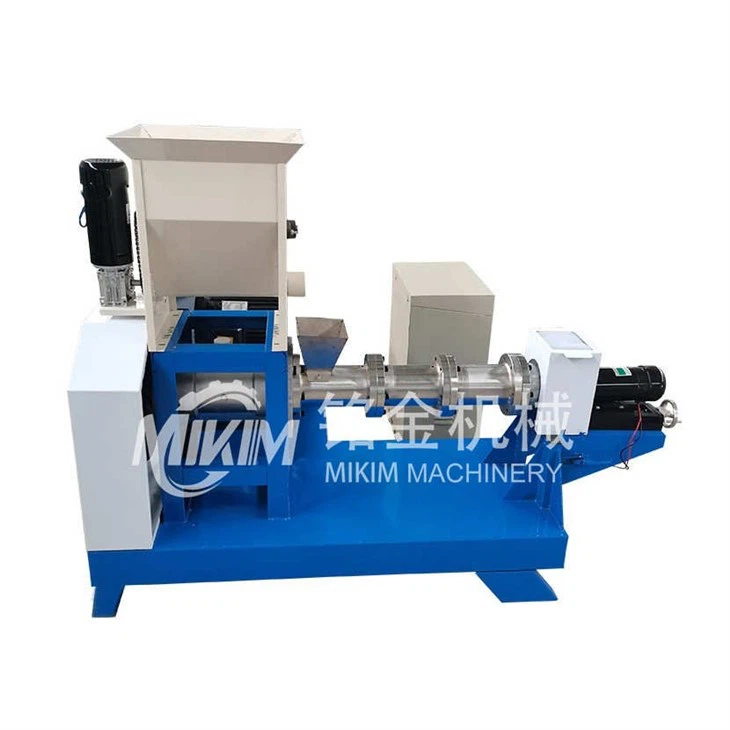

Aub Ntses Pub Extruder Khoom
Cov ntaub ntawv raw tuaj yeem muab tso ncaj qha rau hauv lub tshuab, tuaj yeem nthuav dav rau hauv cov duab sib txawv, cov ntaub so ntswg, zoo saj, nplua nuj khoom noj khoom haus, haum rau dev, miv, ntses, noog, luav, cw, thiab lwm yam tsiaj pub.Ntxiv cov kab kawm tuaj yeem txhawb kev loj hlob sai.Nws tuaj yeem tsim ntau yam duab. Lub qhov hluav taws xob yog nruab nrog lub teb txiav cov cuab yeej ntawm qhov sib txawv zaus tswj ceev. Kev sib hloov ceev ntawm cov hniav tuaj yeem hloov kho ntawm qhov xav tau, txhawm rau tswj kev txiav ceev thiab ntev.Easy rau kev khiav lag luam, yooj yim thiab ceev.
Aub Ntses Pub Extruder Khoom
|
Parameters Qauv |
Lub zog loj (kw) |
Feeder zog (kw) |
Lub cev muaj zog (kw) |
Cutter zog (kw) |
Muaj peev xwm (t/h) |
|
95S |
55 |
1.5 |
5.5 |
3 |
0.5~1.2 |
|
98S |
75 |
1.5 |
5.5 |
3 |
0.6~1.6 |
|
118S |
90 |
1.5 |
11 |
4 |
0.8~2.0 |
|
120S |
110 |
1.5 |
11 |
4 |
1.5~2.2 |
|
145S |
132 |
1.5 |
15 |
5.5 |
2.0~4.0 |
|
148S |
160~200 |
1.5 |
15 |
5.5 |
3.0~6.0 |
|
150S |
200~315 |
2.2 |
18.5 |
5.5 |
8.0~10.0 |
Aub Ntses Pub Extruder Khoom
Lub plawv ntawm lub tshuab extruder ua haujlwm yog preconditioning, ua noj thiab tuag shaping nrog boiler txuas ntxiv muab cov cua kub rau hauv lub txias txias, sib xyaw materaisl los ntawm ntab ntses pub tov khoom tuaj yeem ua tiav tag nrho thiab cov khoom noj muaj txiaj ntsig zoo tuaj. cov txheej txheem ua noj tuaj yeem ua rau qib siab ntawm gelatinization ntawm starches. ua rau feeds nrog zoo stability.
Ntses pub extruder yog ib lub thoob ntev nrog cov ntsia hlau auger sab hauv uas yog tshwj xeeb tsim los rau cov khoom noj sib xyaw kom muaj cua sov thiab lub zog siab, thaum pub tawm ntawm qhov kawg ntawm lub thoob, ntim cov pa tawm sai heev. cov mos sov pellets expand.and tsawg ntom ntab pellet yog tsim.
Tom qab ntawd ib qho cuab yeej txiav yuav txiav cov pellets tsim rau hauv cov legnth sib txawv raws li xav tau. Lub extruder yog ntau yam, thiab tuaj yeem ua pub nrog ntau yam sib txawv.
Nco tseg: peb cov ntses pub extruder yog ntxaib sscrew design.the pellets extruded los ntawm pellet zeb yog li 80℃thiab cov ntsiab lus noo noo yog li 18-20%. yog li koj yuav tsum tau nruab lub tshuab ziab khaub ncaws thiab txias yog tias lub peev xwm ntau dua 500kg ib teev. thaum lub peev xwm me me, koj fcan qhuav lawv nyob rau hauv lub hnub, peb kuj muab techincal mis nyuj rau ua floating ntses noj pellets tom qab tso kev txiav txim.
Cim npe nrov: aub ntses pub extruder khoom, Tuam Tshoj, manufacturers, hoobkas, pheej yig, luv nqi, ua nyob rau hauv Suav teb
